Data policies

This page describes how to use Lenses to create data policies to identify and mask data in Lenses as well as identify applications consuming them.

For version below Lenses 6.0 omit the environment selection.

Data policies allow you to define data masking rules that redact data in Lenses based on field names. This applies to Kafka topics, Postgres tables and Elasticsearch indices.

Additionally, for each policy Lenses will identify not only the datasets involved but also any application, e.g. SQL Processor or Connectors using this data.

How it works

A Data Policy is a rule to detect, classify and protect data with an associated redaction to mask the data.

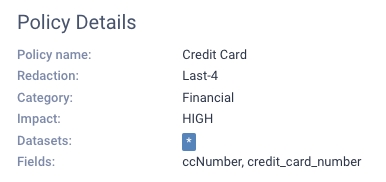

For example, the policy below describes how Lenses should handle Credit Cards. For every dataset, across multiple connections, when a field matches the declared fields in the policy, the data will be masked with the Last-4 redaction, which means only the last 4 digits will appear. The datasets are classified under the Financial category of HIGH severity.

Matching

Lenses maintains an internal cache to identify fields for each dataset (ie, your Kafka topics). Review data types and schemas to understand more about this topic. As a result, every time a new policy is created or a new field is added to an existing policy, the matching mechanism applies and detects which datasets are going to be affected by the policy and also which applications known to Lenses are using them.

Governance

The governance is global and applies to all users. That means that there is no way to “escape” the policy even if you are an admin user. In order to retrieve the actual data, you will have to remove the policy or the respective fields.

Underlying data

The underlying data is not affected by Lenses policies. That means that the applications processing the affected datasets will have full access to the data itself. The policies apply to the Lenses interfaces.

Kafka topics

For Kafka Topics, we apply the Policy to both Key and Value, and the policy will apply to each of these if they contain the corresponding field.

Policy properties

The Data Policy’s principal properties are:

• RedactionThe masking policy, which determines how the fields will be redacted

• CategoryUnder which category will the policy be classified, ie. PII

• ImpactWhat is the severity of the policy

• DatasetsWhich datasets will be applied to. If wildcard, it will apply to all

• FieldsWhich fields will be masked

Redaction Types

The rule to use to obfuscate a field. Lenses applies data obfuscation to all data access requests, and several data types/structures are supported, including Strings, Numbers, Emails for every data format (JSON, XML, AVRO or Protobuf).

Common

These rules can apply regardless of the field type:

Don't want to readact? Set the type to None.

Rules	Explanation
None	Track sensitive data, but do not protect them.
All	Mask the entire value.

Special

These rules can apply only to alphanumeric fields:

Rules	Explanation
Email	Mask email address, showing the domain name.

Strings

These rules can apply only on alphanumeric fields:

Rules	Explanation
Last-1	Display the last 1 characters of the value.
Last-2	Display the last 2 characters of the value.
Last-3	Display the last 3 characters of the value.
Last-4	Display the last 4 characters of the value.
First-1	Display the first 1 characters of the value.
First-2	Display the first 2 characters of the value.
First-3	Display the first 3 characters of the value.
First-4	Display the first 4 characters of the value.
Initials	Display the first letter of each word.

Numbers

These rules can apply to numeric fields:

Rules	Explanation
Number-to-zero	Replace a numeric value with 0.
Number-to-negative-one	Replace a numeric value with -1.
Number-to-null	Replace a numeric value with null.

Fields which are not numeric will not be affected by these Policies. Strings that contain numbers will not be affected either.

Category

What is your Data’s category for sensitivity? Any value can be entered here, based on what makes sense for your organisation to classify the policies. Every policy belongs to one category.

Examples:

Data Classification	Explanation
PII	Personal Identifible Infomation.
HIPPA	Protected Health Infomation.

Find more information about Data Classification. Also here are a few popular options.

Impact

How important is the Data for the Business? It refers to the sensitivity level of the information to be stored and processed.

Impact Level	Explanation
HIGH	Information such as PII(name,religion..)
MEDIUM	Information such as Assets(productIds..)
LOW	Information such as Linkables(Dates..)

Datasets

You can choose to encapsulate your Policy for a specific Dataset(s). This is a wildcard option, and if not specified, it will apply to all Datasets.

Wildcard Rule	Explanation
*word	Will match all Datasets that end with word
word*	Will match all Datasets that start with word
*word*	Will match all Datasets that contain the word

Fields

Specifies which field(s) are targeted and obfuscated. This is also a wildcard option. There are a few advanced field specifications that we need to be careful with.

Nested Fields

In the case of nested data, it is possible to specify nested fields using the “.” character. For example, if your “customers” Dataset has a field called information which contains a field called name, it is possible to specify the field information.nameso that only that particular field is obfuscated, instead of every field.

Note that obfuscation is only performed on nodes without children. Continuing with the example above, information.name will be obfuscated, but if we attempt to apply it to information, it will not be affected, as it has child properties.

Clashing Policies

In the event of two policies matching a given field, the more specific one will be applied. For example, if there is a policy for name with a redaction of First-4 and a policy for customers.information.name with a redaction of Initials, the latter will be applied.

Please note that wildcards and dataset rules do not affect this.

Advanced Wildcards

It is also possible to specify wildcards using the * character so that i*n.name it will match both information.name and installation.name. As . is considered a field separator, such that a wildcard will not match it. So i*n.name will match information.namebut will not match information.details.name

Viewing a policy

To view data policies, go to Environment->Workspaces->Policies.

If no policies are listed, you can load the default policies that come built into Lenses.

Creating a policy

To create a policy, click Environment->Workspaces->Policies->New Policy. Enter the details.

If you wish to have no masking but use the policies to identify datasets containing certain fields, set the Redaction to NONE.

Editing a policy

To edit a policy, select the policy and edit from the actions menu.

Deleting a policy

To delete a policy, select the policy and delete it from the actions menu.
